Conset 501-11 Heavy Duty Sit Stand Desk Frame

Product Description
Maximum quantity available reached.

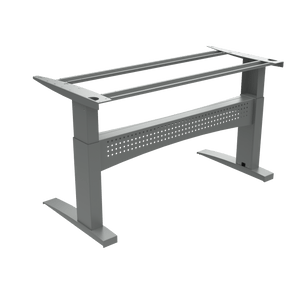

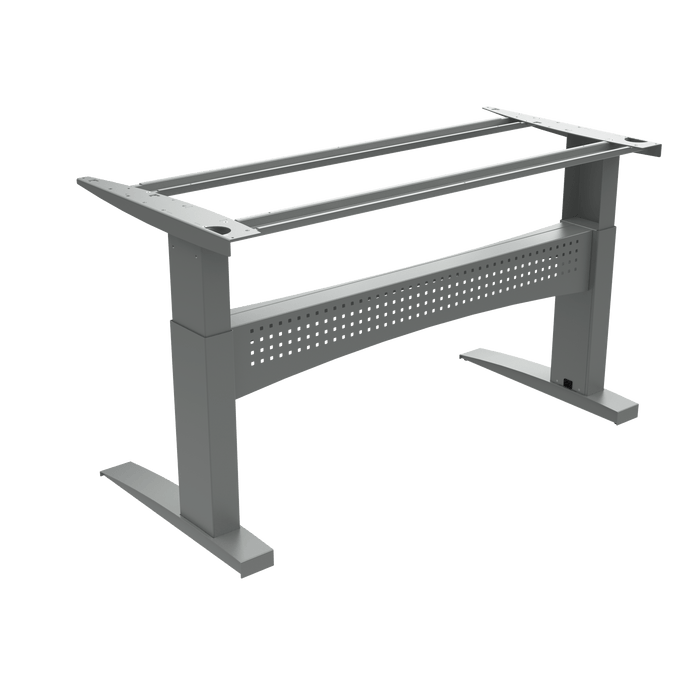

The Conset 501-11 sit stand desk frame is robust and particularly suited to heavy duty applications such as industrial and workshop environments, or for situations where a very heavy or large tabletop is required. The 3 segmented leg is able to achieve an ample height range of 650-1220mm, and can lift a whopping 150kg. 501-11's Herculean lifting capacity makes this frame the ideal choice for working with heavy tools and machinery, or for lifting very large, thick tabletops.

There are 2 frame width options available to suit a range of tabletop sizes - 1560mm and 1960mm. Depending on the rail width you choose, this desk frame is capable of supporting tabletops from 1.6m to 2.4m wide.

All parts required to build your desk are included in this kit with the exception of the table top. Assembly is required.


  • High quality BOSCH electric motor
  • Generous lifting capacity
  • Durable
  • Sturdy, zero wobble
  • Always 100% level - synchronised lift

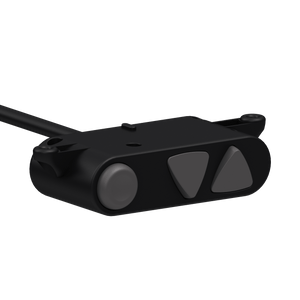

  • Safe - adjustment switch requires two hands to operate


  • Lifting capacity: 150kg
  • Adjustment range: 65-120cm
  • Lifting speed: 25mm/s
  • Lifting mechanism: Single electric motor
  • Fits tabletops from 1600mm to 2400mm wide
  • Minimum tabletop depth 750mm
  • Frame colour: Silver
  • Warranty: 5 years

Technical Drawings

Conset 501-11 standing desk frame with 156cm rail.pdf
Conset 501-11 standing desk frame with 196cm rail.pdf
